FIT
Compatibility first
VS1
Viofo Hardwire Kit accessory.
£14.95
The HK5 is the dedicated Type-C hardwire kit for the VIOFO VS1. It supplies permanent and ignition-switched power through the fuse box, enables automatic parking-mode switching and adds selectable low-voltage protection for the vehicle battery.
VS1
HK5 combines constant power, ACC detection and four voltage cut-off settings in a compact 4m Type-C hardwire cable.
The Battery feed keeps power available while parked and the ACC feed tells the VS1 when the ignition state changes, allowing the camera to switch between normal and parking operation automatically.

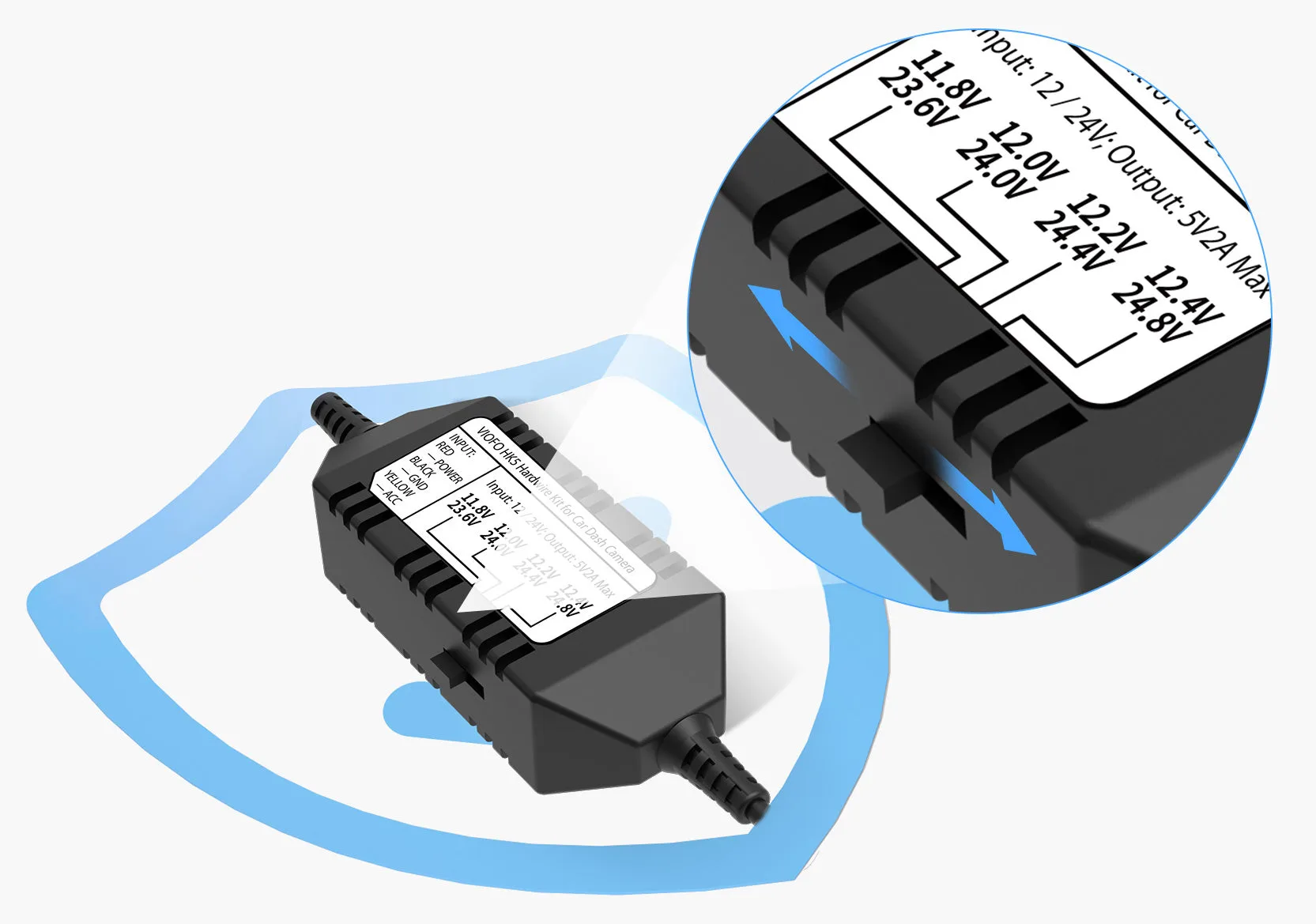

The control module lets you choose the battery-voltage threshold. When vehicle voltage drops to the selected level, HK5 stops supplying the dash cam to help prevent excessive battery discharge.
HK5 accepts 12–24V vehicle input and provides a 5V / 2A output to the compatible dash cam, so the same kit can be used across a broad range of passenger and commercial vehicles.

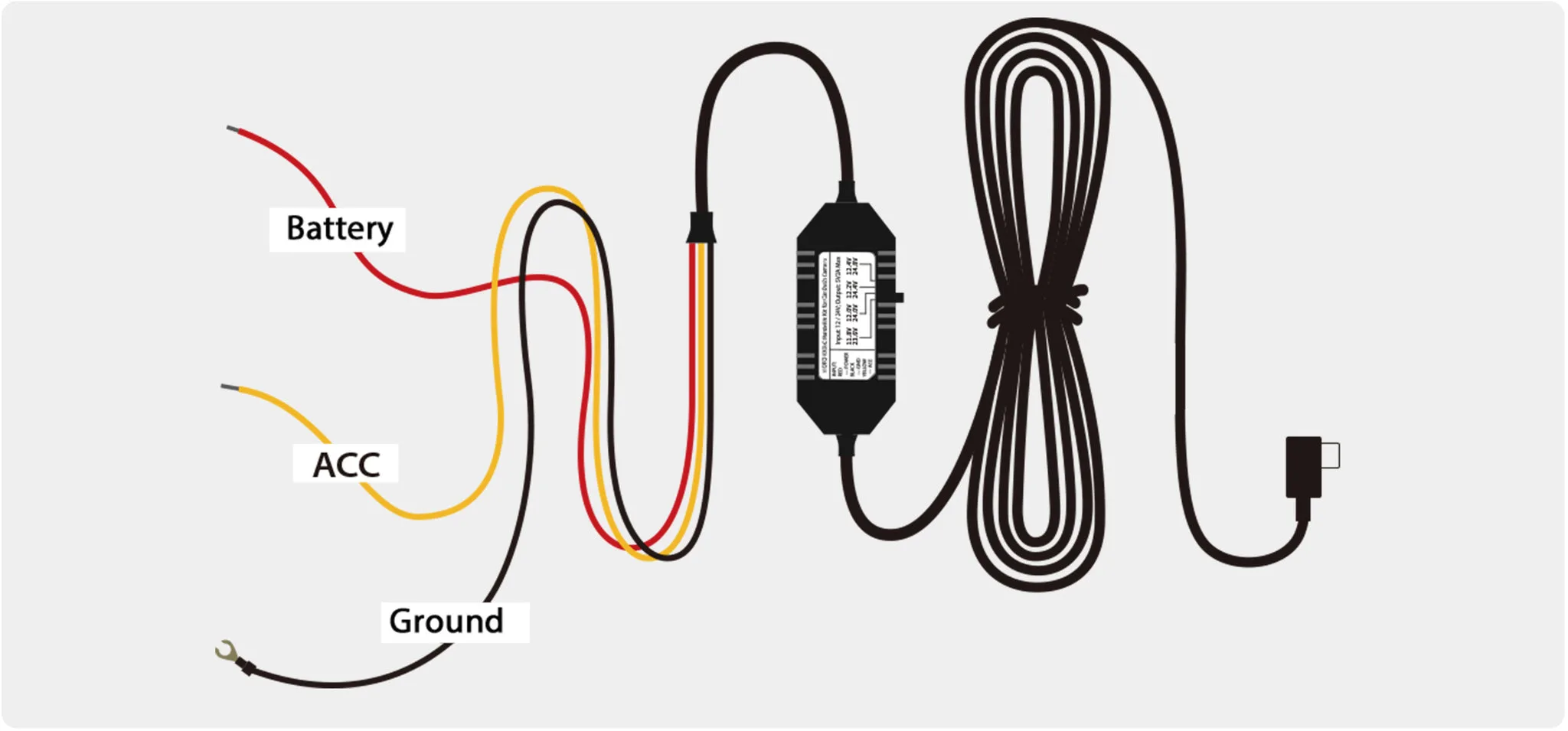

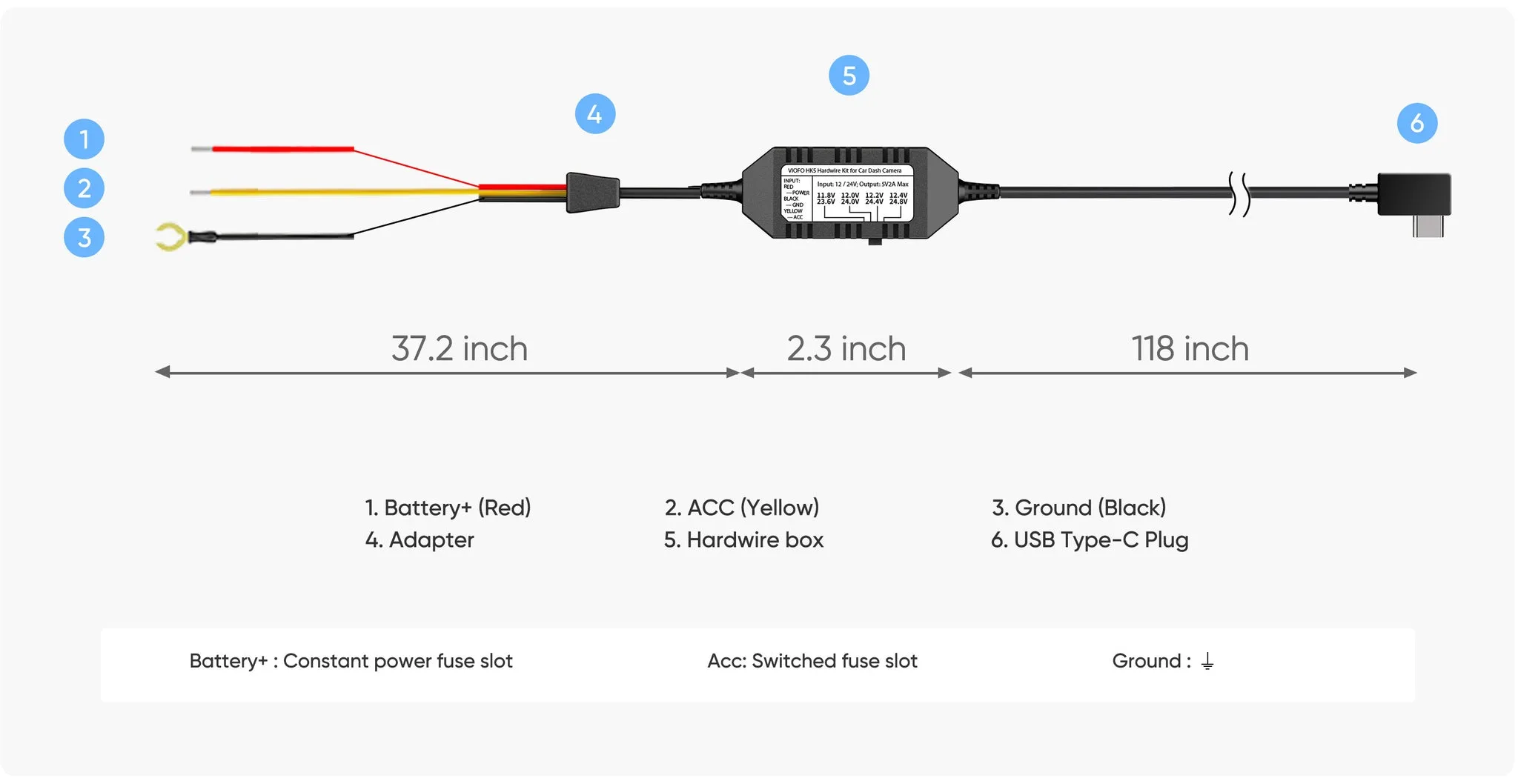

The wiring diagram makes it easier to identify the permanent feed, ACC feed and ground before the cable is routed to the VS1.

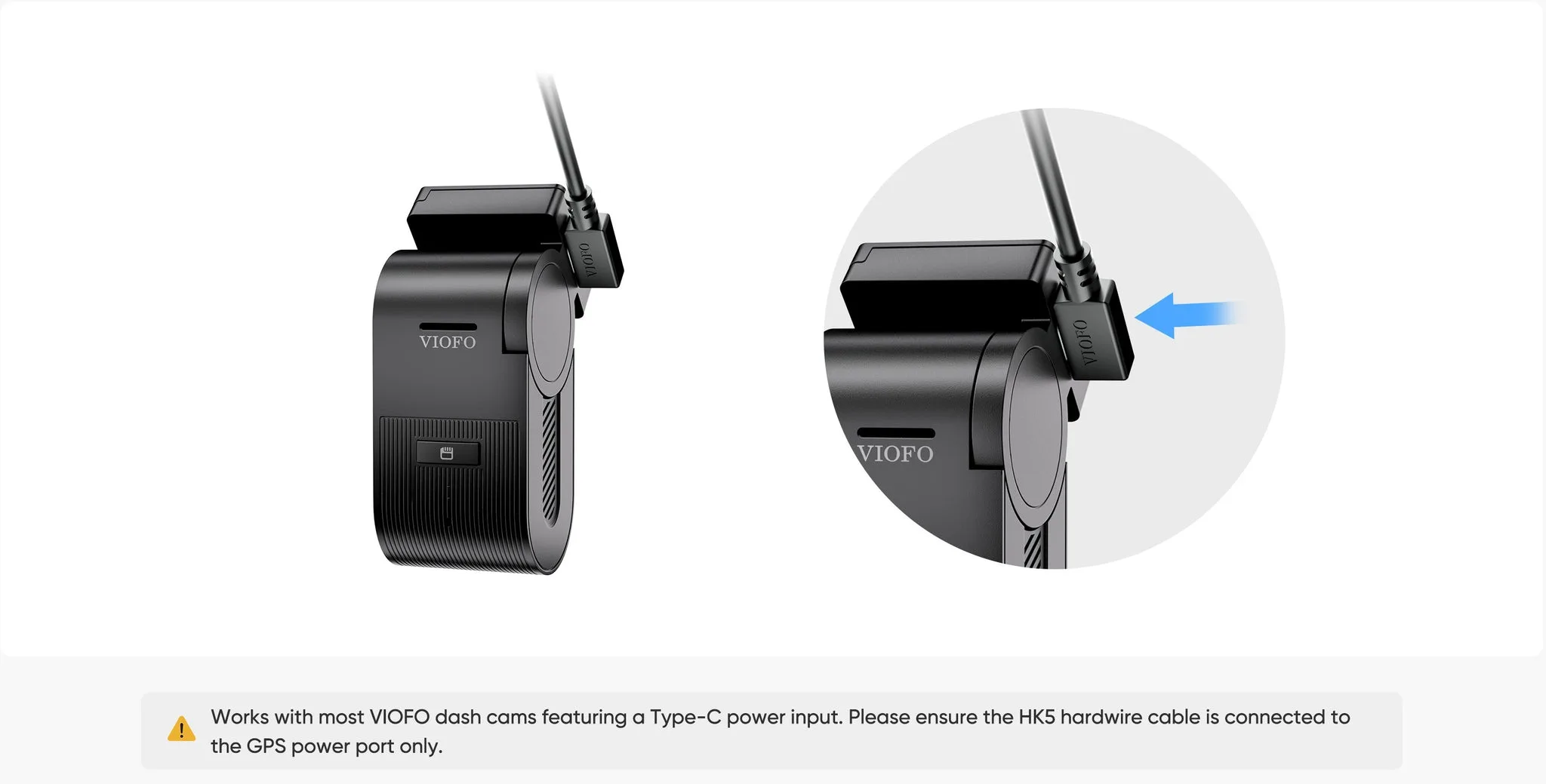

Use the intended Type-C/GPS power connection for the supported camera setup. Correct connection matters even where another Type-C socket appears physically similar.
The permanent feed powers parking recording, while ACC tells the camera whether the ignition is on so it can switch operating modes automatically.
It stops drawing from the vehicle battery when voltage falls to the selected threshold, helping preserve enough charge to start the vehicle.
No. Match the exact hardwire-kit model to the dash cam. Parking features and power signalling differ between VIOFO families.
